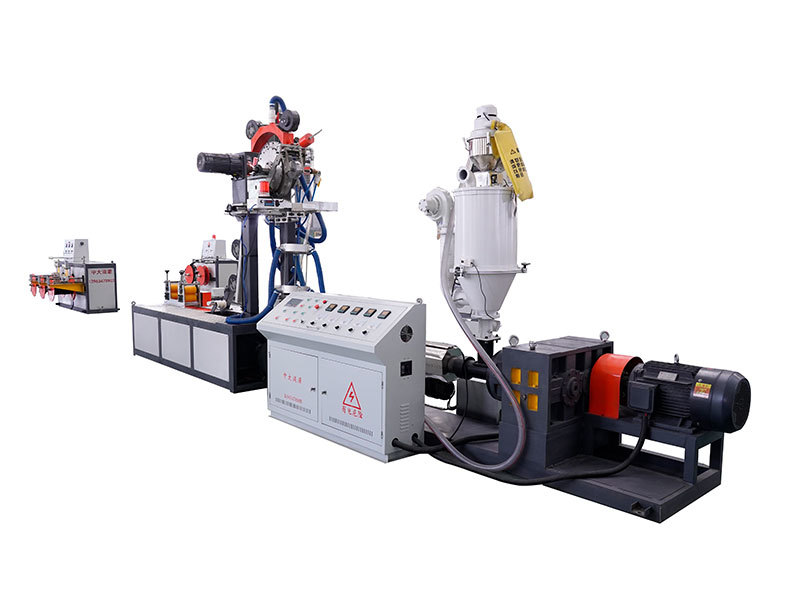

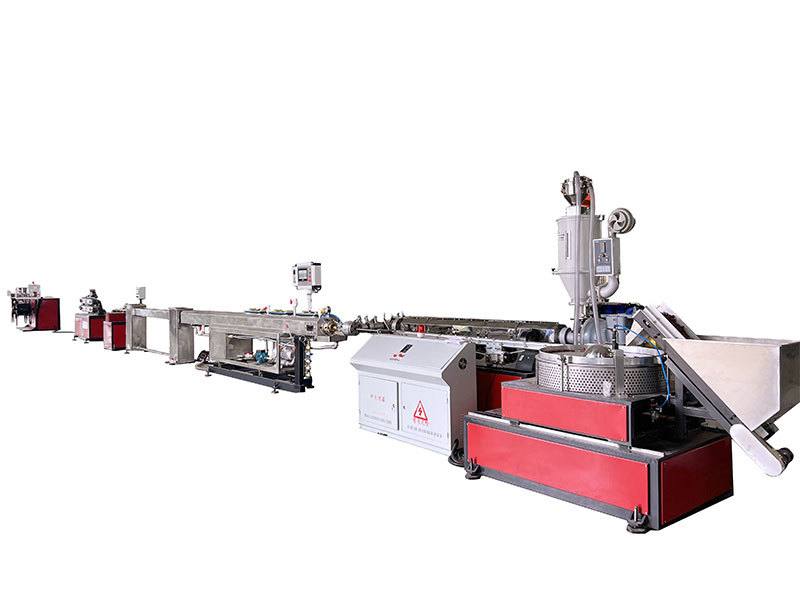

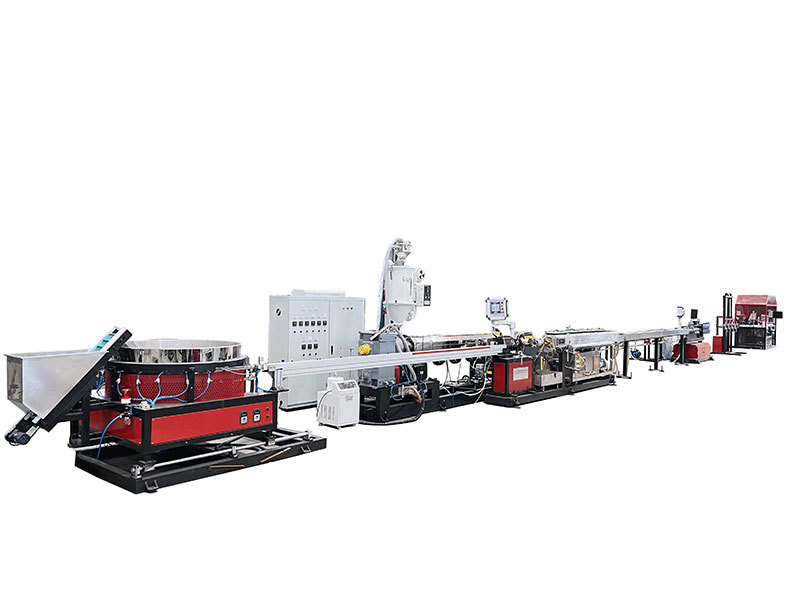

Inner round emitter drip irrigation pipe production line
Key words
Inner round emitter drip irrigat
Details
Product：
|
Name: |
pipe diameter（mm） |
thickness（mm） |
Dripper space(cm) |
|

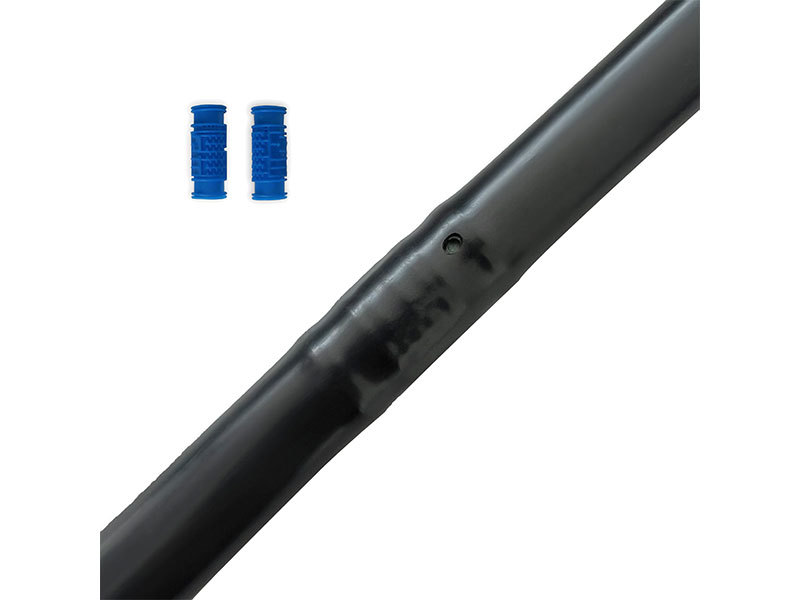

Drip pipe |
16,20mm |
0.6-1.2mm |
10-100cm |
Wroking condition:
|
humidity |
0-40℃ |
|
Power source |
3 phase 380v, 50Hz |
|
Installation power |
About 80kw |
|
Cooling water |
≤15℃ ≥0.3Mpa ～100L/min |
|
Compressor air |
5m3/h 0.4-0.6Mpa |
|
size |
30*3*2.6m（l*w*h） |
|
Line speed |
0-60m/min |
Production line compositon
|
Name |
|
Every part name |
No. |
|

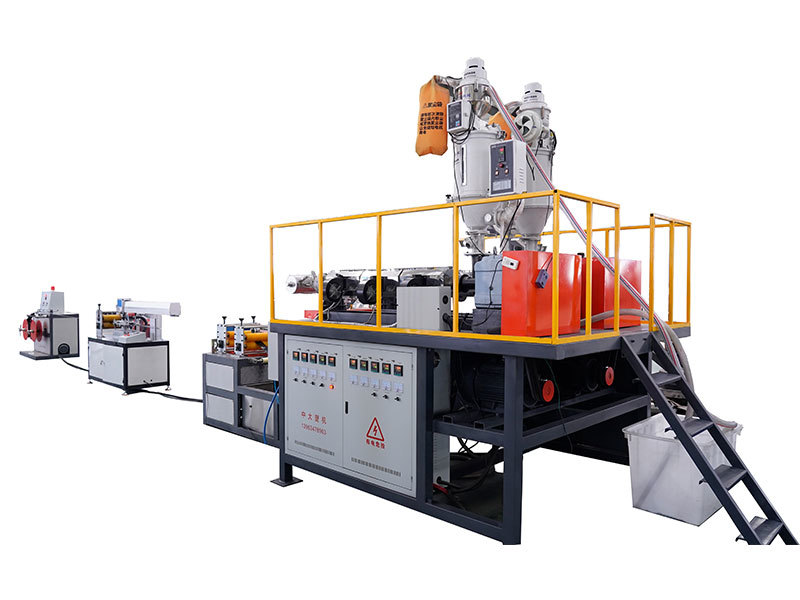

Inner round emitter drip irrigation pipe production line
|
1 |
Dripper sorting and inserting systerm |
1 |
|
2 |
Automatic material feeding and drying system |
1 |
|
|
3 |
SJ-75×33/1 single screw extruder |
1 |
|
|
4 |
Die-head |
1 |
|
|
5 |
Vacuum sizing tank |
1 |
|
|
6 |
Cooling water tank |
1 |
|
|
7 |
Haul off part |
1 |
|
|
8 |
Punching machine |
1 |
|
|
9 |
Winding machine |
1 |
|
|
10 |
Electric cabinet |
1 |
Main technical parameter：

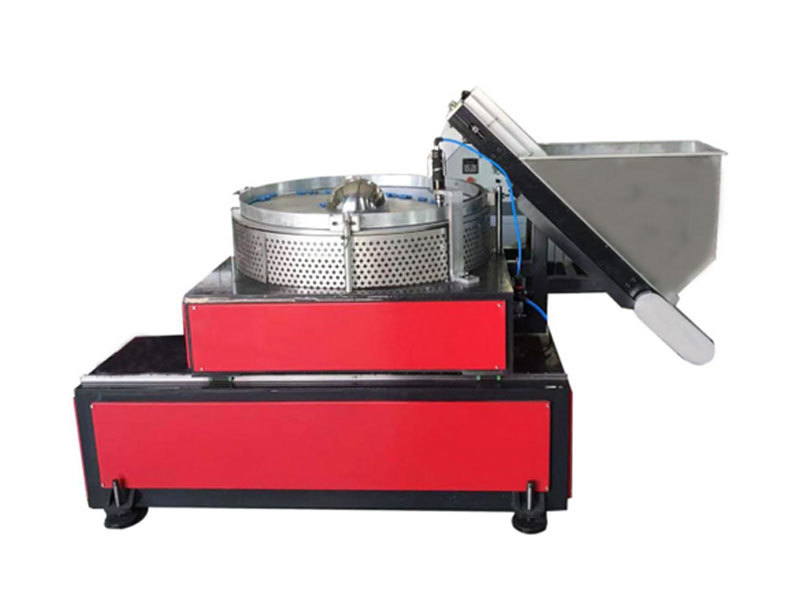

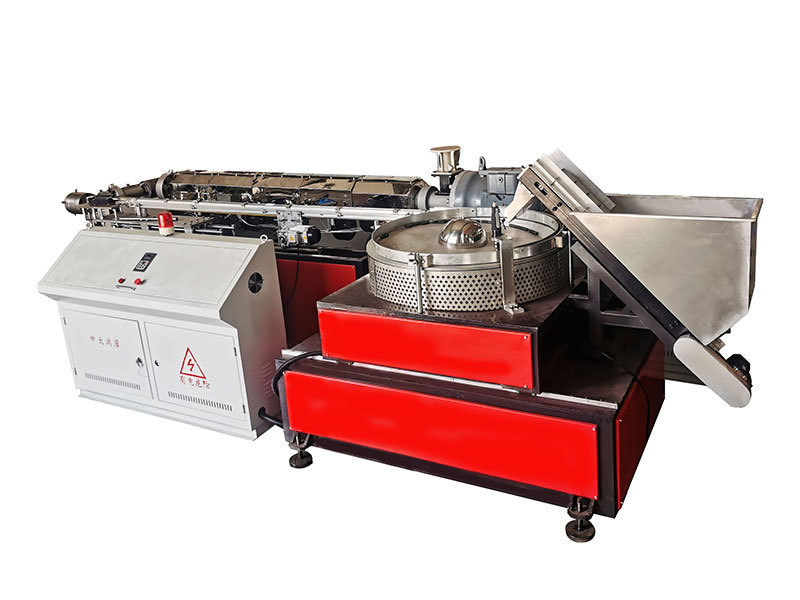

sorting and inserting system：
þ Infrared photoelectric sensor accurately controls the automatic feeding of the flat dripper
þ Ø700mm sorting and inserting speed 300pcs/min
High efficiency extruder：
þ high output,low energy consumption and low noise
þ After quenching and tempering and nitriding heat treatment, the screw barrel screw has the characteristics of high temperature resistance, wear resistance, corrosion resistance and high strength, which greatly increases the service life; Reasonable and unique design of plasticizing section makes the surface of products smooth and glossy.
PLC control system：
þ high-performance PLC man-machine interface control system, and the operation process is convenient and easy to understand.

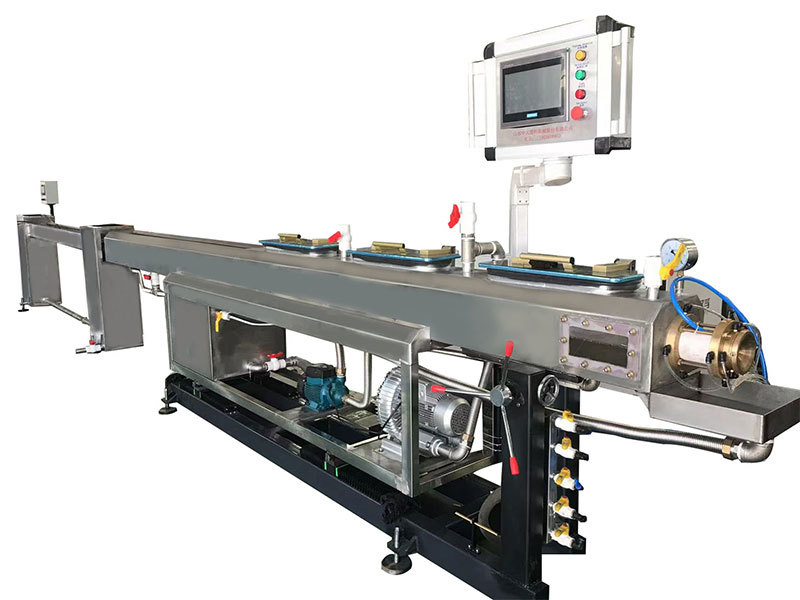

Vacuum sizing and cooling system:
þ Sizing system: a variety of alloys synthesize high-strength wear-resistant brass, which is easy to adjust.
þ Vacuum system: advanced pipeline layout design, good vacuum sealing and better cooling effect.

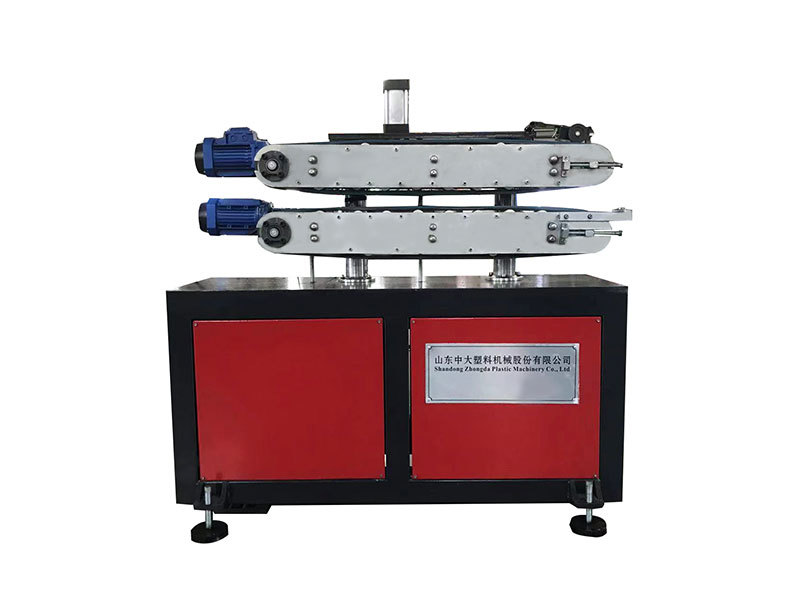

Haul off
þ Tractor: it adopts belt type pneumatic regulation traction

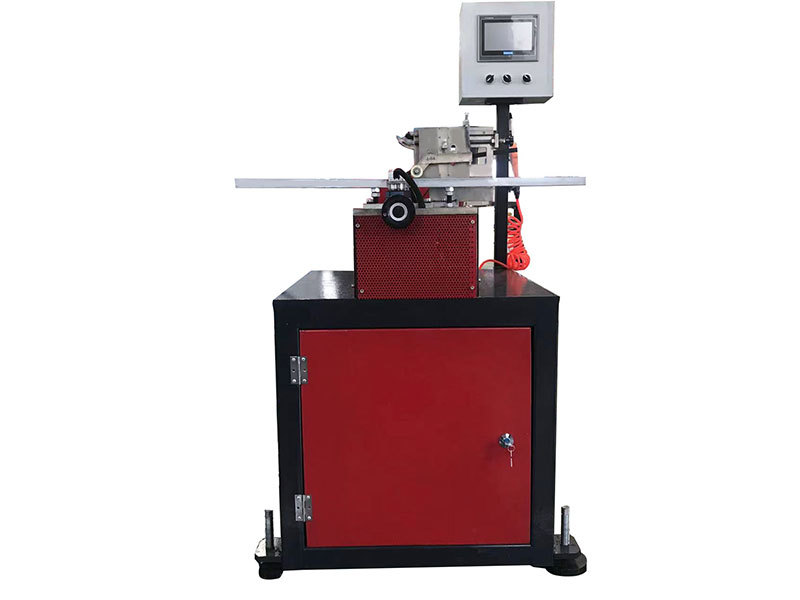

Punching system
þ Punching part: Servo punching, punching speed up to 300 times / min

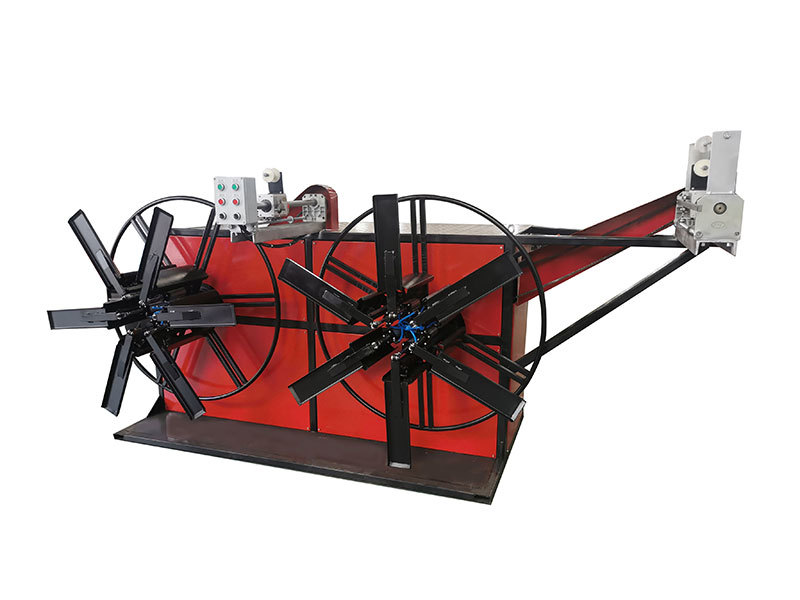

winding machine：
þ Automatic winding，roller changing by manual
þ Meter setting: 300-500m / roll
-
